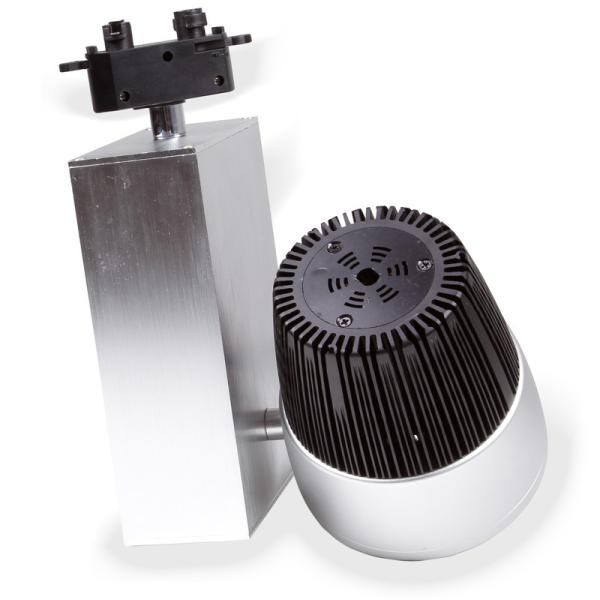

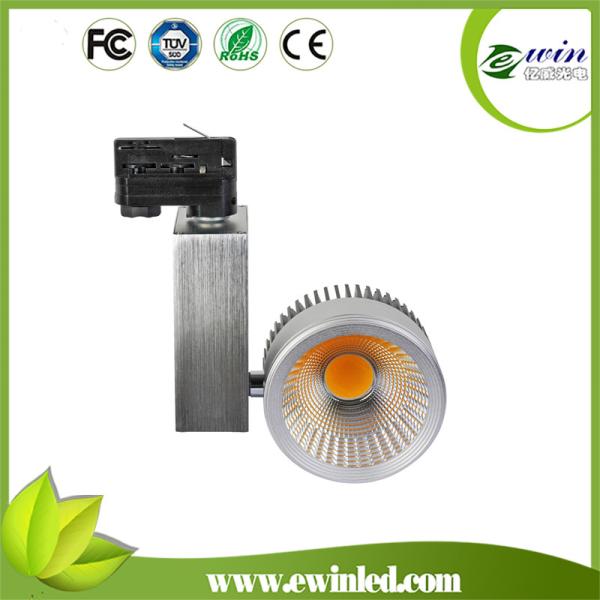

Track mounted adjustable LED spot light 30w

Name: Track mounted adjustable LED spot light 30w
Brand: EWIN
Price: 12 USD

China Track mounted adjustable LED spot light 30w wholesale

Place of Origin : china

Brand Name : EWIN

Certification : CE ROHS

Model Number : EW-TL-COB-30W

Light Source : LED

LED Light Source : cob chips

Warranty(Years) : 3

Input Voltage(V) : 100-277

Lamp Power(W) : 33

Lamp Luminous Flux(lm) : 3300-3700

Lamp Luminous Efficiency(lm/w) : 120

CRI (Ra>) : 82

Color Temperature(CCT) : Pure White

Working Temperature(℃) : -40 - 45

Working Lifetime(Hour) : 50000

Lamp Body Material : Aluminum

color of housing : white black aluminum

power factor : 0.90-0.98

power efficiency : 0.85

track adaptor : 2-way 3-way 4-way

SDCM : <4

Frequency range : 50-60Hz

beam angle : 30 or 50 degree

Item Type : Track Lights

MOQ : 10pcs

Price : 12-82USD

Packaging Details : Box for each:280*125*250mm. Carton for 6 pcs; 62*32*28cm.

Delivery Time : usually 7-10 working days

Payment Terms : T/T, Western Union

Supply Ability : 5000PCS/Month

Contact Now

30w led track spotlight ,led track spot light ,cob led track light

Description	Brand options	Voltage	PF	CRI	Beam	Dimension mm	Netweight
10W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	80×95(lamp) 132 ×85 × 45(power box)	0.9kg
15W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	102×122(lamp) 132 ×85 × 45(power box)	1.20kg
20W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	102×122(lamp) 132 ×85 × 45(power box)	1.20kg
30W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	122×137(lamp) 178 ×125 × 60(power box)	1.75kg
40W LED COB Track light	Cree/Bridelux/ Citizen/Gosun	100-277vAC	>0.9	>82	30°/50°	Φ122 ×130mm	1.70kg

1.Product features

LED power	30W
Lamp consumption	34W
Output	3300-3700lm
Beam angle	30 or 50 degree
Input voltage	AC100-277V
Frequency Range	50-60HZ
CRI	>82
Working Temperature	-40°c-65°c
Storage Temperature	-25°c-65°c
Color of housing	Aluminum,white ot black
Lifespan	50,000+hrs
Certificate	CE/ROHS/ERP/SAA/SASO/GS

2.COB parameter

PCB	Ceramic
Chip size	18*33mil
Output	3800-4200lm
Chip Qty	462pcs
CRI	>82
Voltage	30-33vDC
Current	1000mA
Brand options	Cree/brigelux/Citizen

3.Driver parameter

Brand	Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC
Input	AC100-277vAC
Output	18-30vDC,1000mA
Power Factor	0.9-0.99
Power Efficiency	88%
Certificate	EMC/TUV/UL/CE/CQC/PSE
Dimmable	Triac /Dali /Wi-Fi available

Data Sheet:

Part No.	Color	CCT	Output	Size(mm)
EW-STL-COB-30W-WW	Warm White	2700K-3500K	3300-3400lm
EW-STL-COB-30W-NW	Natural white	4000K-4500K	3400-3500lm
EW-STL-COB-30W-CW	Cool White	5500K-6500K	3500-3700lm

Dimensions(mm):

Track mounted adjustable LED spot light 30w

Test report: ( Note: The beam angle is only about 1/2 output of the all illuminated. )

Track mounted adjustable LED spot light 30w

More Pictures:

Track mounted adjustable LED spot light 30w Packing&shipping

EPE Cotton and hard board protect: Track mounted adjustable LED spot light 30w n

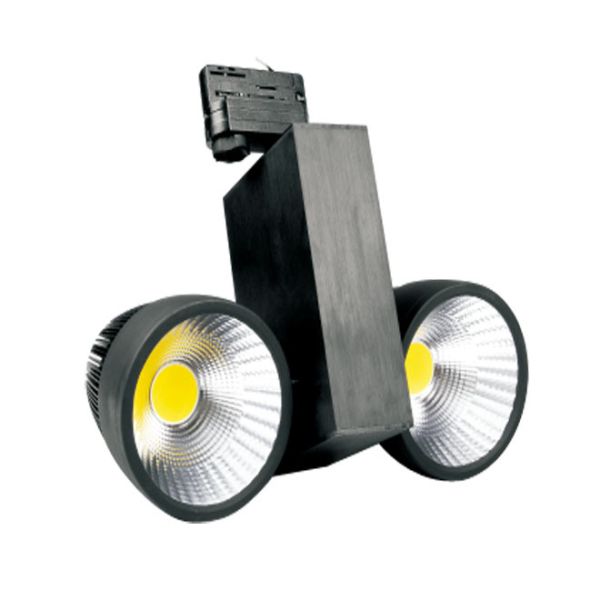

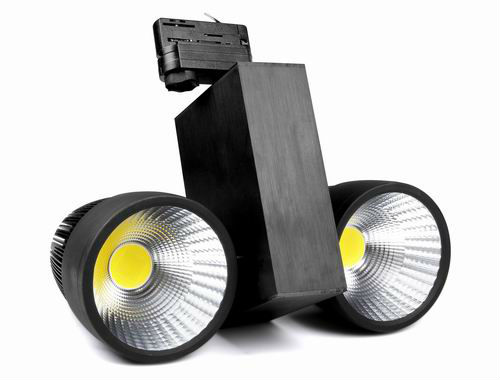

more products

Track mounted adjustable LED spot light 30w

Packaging

Track mounted adjustable LED spot light 30w

Services and Promise

Our service:

1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your enquires influent English.

3. OEM & ODM are welcomed, OEM brand is available.

4. Distributor ship is offered for your unique desigh and some our current models.

5. Protection of your sales area, ideas of design and all your private information.

Our quality control:

* All products must go through five checks before manufacturing process.

* Raw material full check before production.

* Full check after every individual process finished.

* Full check after production half-done.

* 500 times on and off testing after production finished.

* Full check after production packed before shipping.
